Skipjack, the originally secret algorithm associated with the infamous Clipper chip, was declassified on Tuesday, June 23, 1998, and appeared as a .PDF document at the NIST web site the following morning.
The basic round type of Skipjack forms another alternative, alongside those offered by SAFER and IDEA, to the Feistel round structure seen in DES, LUCIFER and Blowfish, among other block ciphers. In each round, one of four quarters of the block is subjected to four Feistel rounds on a small scale, and one other quarter is modified by being XORed with the round number and the quarter that went through the mini-Feistel cipher, either before or after that step. No bit transposes are required in Skipjack, making it efficient to implement on a general-purpose computer.
Skipjack has 32 rounds. These rounds are of two types, A and B. A type A round proceeds as follows:
The first quarter of the block (called W1) is enciphered by the "G permutation", which is actually a four-round Feistel cipher. The result, and the round number (where round numbers go from 1 through 32), are XORed with the fourth quarter of the block (W4). Then each quarter of the block is moved to the next position; W1 to W2, W2 to W3, W3 to W4, and W4 back to W1.
A type B round proceeds as follows:
The second quarter of the block (W2) is XORed with the round number and the first quarter of the block (W1). Then the first quarter of the block is enciphered by the "G permutation". Again, each quarter of the block is moved to the next position; W1 to W2, W2 to W3, W3 to W4, and W4 back to W1.
The rotation of quarters of the block is not omitted after the last round. The 32 rounds of Skipjack consists of eight type A rounds, eight type B rounds, eight type A rounds, and eight type B rounds. Note that by having a type A round first, and a type B round last, the form of the first quarter on the "inside" is XORed with one of the other quarters in the first and last rounds.
Permutation G is a four-round Feistel cipher, involving dividing its 16-bit input into two 8-bit halves. Like DES, the left half of the block is not changed in each round, but acts as input to the f-function, the output of which is XORed to the right half. Unlike DES, the two halves are swapped after the last round (as the algorithm has only four rounds, all four iterations of the f-function can be illustrated, going alternately from right to left, and then from left to right; in that form, no swaps at all are required).
The f-function of the G permutation is as simple as one might expect for an f-function only 8 bits wide: the input is first XORed with the current round's subkey, and then the result is substituted according to a lookup table, called F.
The subkeys for G, each one byte long, are simply four consecutive bytes of the 80-bit key. The first four bytes are used in the first round, the next four bytes in the second, the last two bytes followed by the first two bytes in the third, and so on.

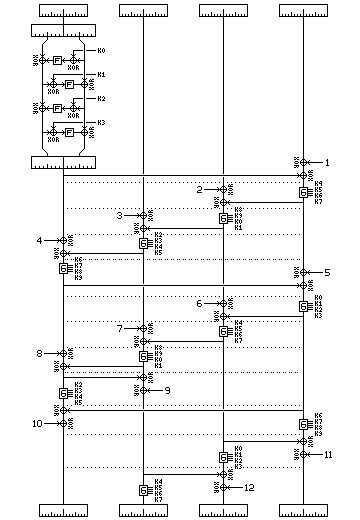

The operation of Skipjack may be made clearer by the following diagram:
which illustrates the first 12 rounds of Skipjack. The first round, of type A, is shown with the G function illustrated in full. The next seven rounds, also of type A, are shown with the G function indicated by a box marked with a G. Then the last four of the twelve rounds shown, of type B, are showed the same way. There are dotted lines dividing the rounds in the diagram.
Instead of rotating the quarters of the block, the functions move between columns; since the last rotation is not skipped, this illustration will show, if continued to include all 32 rounds, the quarters ending up in their proper places without any final rotation being required.
The S-box of Skipjack, called F, which is the heart of the f-function of the Feistel mini-cipher that is the G permutation, is as follows:
a3 d7 09 83 f8 48 f6 f4 b3 21 15 78 99 b1 af f9 e7 2d 4d 8a ce 4c ca 2e 52 95 d9 1e 4e 38 44 28 0a df 02 a0 17 f1 60 68 12 b7 7a c3 e9 fa 3d 53 96 84 6b ba f2 63 9a 19 7c ae e5 f5 f7 16 6a a2 39 b6 7b 0f c1 93 81 1b ee b4 1a ea d0 91 2f b8 55 b9 da 85 3f 41 bf e0 5a 58 80 5f 66 0b d8 90 35 d5 c0 a7 33 06 65 69 45 00 94 56 6d 98 9b 76 97 fc b2 c2 b0 fe db 20 e1 eb d6 e4 dd 47 4a 1d 42 ed 9e 6e 49 3c cd 43 27 d2 07 d4 de c7 67 18 89 cb 30 1f 8d c6 8f aa c8 74 dc c9 5d 5c 31 a4 70 88 61 2c 9f 0d 2b 87 50 82 54 64 26 7d 03 40 34 4b 1c 73 d1 c4 fd 3b cc fb 7f ab e6 3e 5b a5 ad 04 23 9c 14 51 22 f0 29 79 71 7e ff 8c 0e e2 0c ef bc 72 75 6f 37 a1 ec d3 8e 62 8b 86 10 e8 08 77 11 be 92 4f 24 c5 32 36 9d cf f3 a6 bb ac 5e 6c a9 13 57 25 b5 e3 bd a8 3a 01 05 59 2a 46
or, in decimal form,
163 215 9 131 248 72 246 244 179 33 21 120 153 177 175 249 231 45 77 138 206 76 202 46 82 149 217 30 78 56 68 40 10 223 2 160 23 241 96 104 18 183 122 195 233 250 61 83 150 132 107 186 242 99 154 25 124 174 229 245 247 22 106 162 57 182 123 15 193 147 129 27 238 180 26 234 208 145 47 184 85 185 218 133 63 65 191 224 90 88 128 95 102 11 216 144 53 213 192 167 51 6 101 105 69 0 148 86 109 152 155 118 151 252 178 194 176 254 219 32 225 235 214 228 221 71 74 29 66 237 158 110 73 60 205 67 39 210 7 212 222 199 103 24 137 203 48 31 141 198 143 170 200 116 220 201 93 92 49 164 112 136 97 44 159 13 43 135 80 130 84 100 38 125 3 64 52 75 28 115 209 196 253 59 204 251 127 171 230 62 91 165 173 4 35 156 20 81 34 240 41 121 113 126 255 140 14 226 12 239 188 114 117 111 55 161 236 211 142 98 139 134 16 232 8 119 17 190 146 79 36 197 50 54 157 207 243 166 187 172 94 108 169 19 87 37 181 227 189 168 58 1 5 89 42 70
This was double-checked by looking at the inverse of this S-box generated by the same program that converted what I typed from hexadecimal to decimal, as the S-box is a straight permutation of the numbers from 0 to 255. In the original document in its electronic form, lowercase c and e are sometimes difficult to distinguish.
For decipherment, each round is replaced by a corresponding deciphering round, and these rounds are, of course, executed in the reverse of the enciphering order.
The deciphering equivalent of a type A round is as follows:
The first quarter, W1, is XORed with W2 and the round number (rounds now counting down from 32 to 1). Then the second quarter, W2, is subjected to the inverse of the G permutation. Then, each quarter is moved to the position of the preceding one; W1 to W4, W2 to W1, W3 to W2, and W4 to W3.
The deciphering equivalent of a type B round is the following:
The second quarter, W2, is subjected to the inverse of the G permutation. The third quarter, W3, is then XORed with the round number and the changed value of W2. Again, each quarter is moved to the position of the preceding one; W1 to W4, W2 to W1, W3 to W2, and W4 to W3.
The deciphering equivalent of the G permutation involves using the four subkeys in reverse order - and reversing the roles of the right and left halves of the 16-bit quarter block.
SKIPJACK was declassified in order to facilitate finding private companies to manufacture devices using that algorithm for use by the U.S. Government. Some people have called attention to the fact that only a short time previously, government spokespersons were saying that the disclosure of that algorithm would harm national security.
However, I have noted that the inconsistency involved may be more apparent than real. Between the statements cited, and the declassification of SKIPJACK, a paper was published by an academic researcher noting that Feistel ciphers of a particular type, specifically those in which the f-function was itself a series of Feistel rounds, could be proven to be immune to differential cryptanalysis.
SKIPJACK, although not precisely of that type, is closely related: one of the four subblocks undergoes Feistel rounds, but in addition to the result being used, as an f-function output, on another subblock, the subblock is also retained in its modified state.
Also, note that SKIPJACK consists of eight type A rounds, followed by eight type B rounds twice, instead of sixteen type A rounds and then sixteen type B rounds. Since the type A rounds are appropriate for the beginning of the cipher, and the type B rounds are appropriate for its end, it might seem at first that this weakened the cipher. However, the boomerang attack, which was discovered after the declassification of SKIPJACK, allows differential cryptanalysis to be done independently on the first and last half of a block cipher; thus, if SKIPJACK were composed of two halves, each with one type of round, it could have been attacked as if it consisted of only a single type of round.
It may also be noted that a recent book, Top Secret Intranet, reveals that SKIPJACK was considered adequate to safeguard information classified SECRET but not information classified TOP SECRET. This appears to refer to early 1999, and may still be the case as of this writing (May 1999). Also, note that SKIPJACK has an 80-bit key, the key-length limit for exportable ciphers is 40 bits, and some suppliers of encryption equipment to the U.S. government have advertised their equipment provides a 120-bit key or a 160-bit key. This may be because 40 is a multiple of both 8 and 10, and 2^10 equals 1024, which is just over 1000. Thus every 40 bits in a key can have just over a trillion possible values, making it easy to express the number of possible keys in decimal terms.
One notes that the key consists of 10 bytes, which is a number of the form 4n+2. While it might not increase the security of SKIPJACK to do so, if there are no subtle traps in the structure of SKIPJACK, which appears to have a simple and uniform structure, it might be possible to use a key composed of the next such number of bytes with it: 14 bytes. That is an interesting possibility, because such a key would be a 112-bit key, exactly twice as long as the key used in DES.
